Special high-performance lighting for Special Applications

NEW '2011: Added the new model SLIM thin (only 16mm high!).

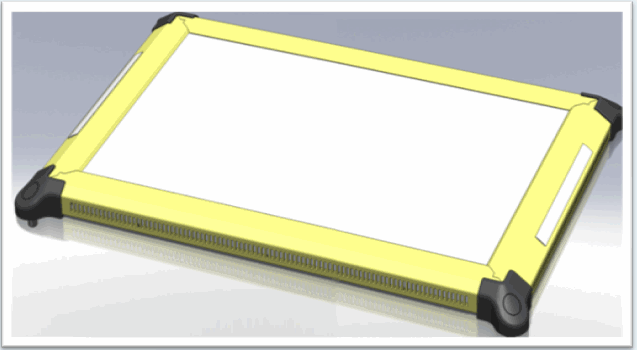

The ultra-flat-panel LED lights represent a higher level of lighting environments. lighting environments.

Adopt SMD LEDs with high efficiency, able to create a panel illuminated uniformly.



Efficiency

In relation to the light emitted is characterized by their low power consumption, and are intended to replace

neon tubes, for which have a useful life 10 times higher with lower fuel consumption by 50%.



Resistance High mechanical

Thanks for fixing ceiling / wall tested finite element analysis, are able to withstand shocks than 10g and make them suitable for special applications that require this feature.



Versatility

The fixing frame is available in the following configurations:

·         Stainless steel with a rough finish or satin

·         Iron powder coated in any RAL

Implementation of measures non-standard/custom request.

Available in two versions: with or without night light (blue or red).



Applications

Lighting systems for military shelters aviostrasportabili

Lighting systems equipped containers

Lighting systems for shipboard environments





Specifications:



Light source: high-efficiency LEDs

Illumination angle: 150 °

Operating Temperature Rating: -20 ° C / +40 ° C

Extended operating temperature (*): -40 ° C / +70 ° C

Power supply:   12 VDC

Daylight Color:    Cool white 6000 ° K

Night Light color:  Blue or Red

MTBF

Modelloquot, sans-serif "color: black"> Model

Dimensions

Weight

Number

Power

Flow

Light intensity

LED

absorbed

bright

lux/1m

lux/2m

lux/3m

ENT-300-300

342x342x27mm

3.5 kg

60

18.7 W

1071 lm

203

52

24

ENT-300-600

342x642x27mm

5.8 kg

150

43.7 W

2285 lm

400

120

55

ENT-300-900

342x942x27mm

8.8 kg

180

57.5 W

2600 lm

750

215

103

ENT-600-600

642x642x27mm

9.5 kg

150

47.2 W

2320 lm

480

135

65



180x930x16mm

5.2 kg, "sans-serif" color: black '> 5.2 kg

200

40 W

2200 lm

1057

246

118

(*) The data above are for operation at room temperature with nominale.oa temperature.

































Specifications:

TEST STANDARD

EN 61347-2-13:2006

EN 60598-2-1:1989

A11 2009 + EN 60950-1:200



DEDICATED TEST

High Temperature: MIL STD 810F Method 501.4 Proc

Low Temperature: MIL STD 810F Method 501.4 Proc
